The Galintel Retaining Wall Post system provides an “all-in-one solution” for accommodating timber, concrete, and masonry sleepers for residential, commercial, and industrial sites.
At Galintel, we work with leading structural engineers, architects, and landscape designers to design and manufacture steel retaining wall posts that are structurally sound, sleek, and attractive.
Supported by technical ratings for structural applications, all the Galintel range of Heavy Duty Retaining Wall Post systems are designed to enable quick and easy installation to save time and money.
Features:
- Convenient & easy to install.
- Available in 100mm & 150mm Series Posts.
- Extensive range of stock lengths available.
- Fully Hot Dip Galvanised to AS/NZS 4680:2006.
- All posts are pre-drilled for fence bracket connection.
- Fence brackets available for timber or steel posts are supplied complete with fixings.
- Retaining Wall Post Installation Guide.
- Supported by technical ratings as specified by structural engineers.
- Labelled & bar coded.
Benefits:
- Superior performance and structurally sound.
- Long life, durable, and low maintenance.
- Steel will not warp and is resistant to termites.
- Simple design.
- Cost effective.
- Versatile.
- Easy identification.
- Peace of mind.
Our Premium Range of Retaining Wall Posts

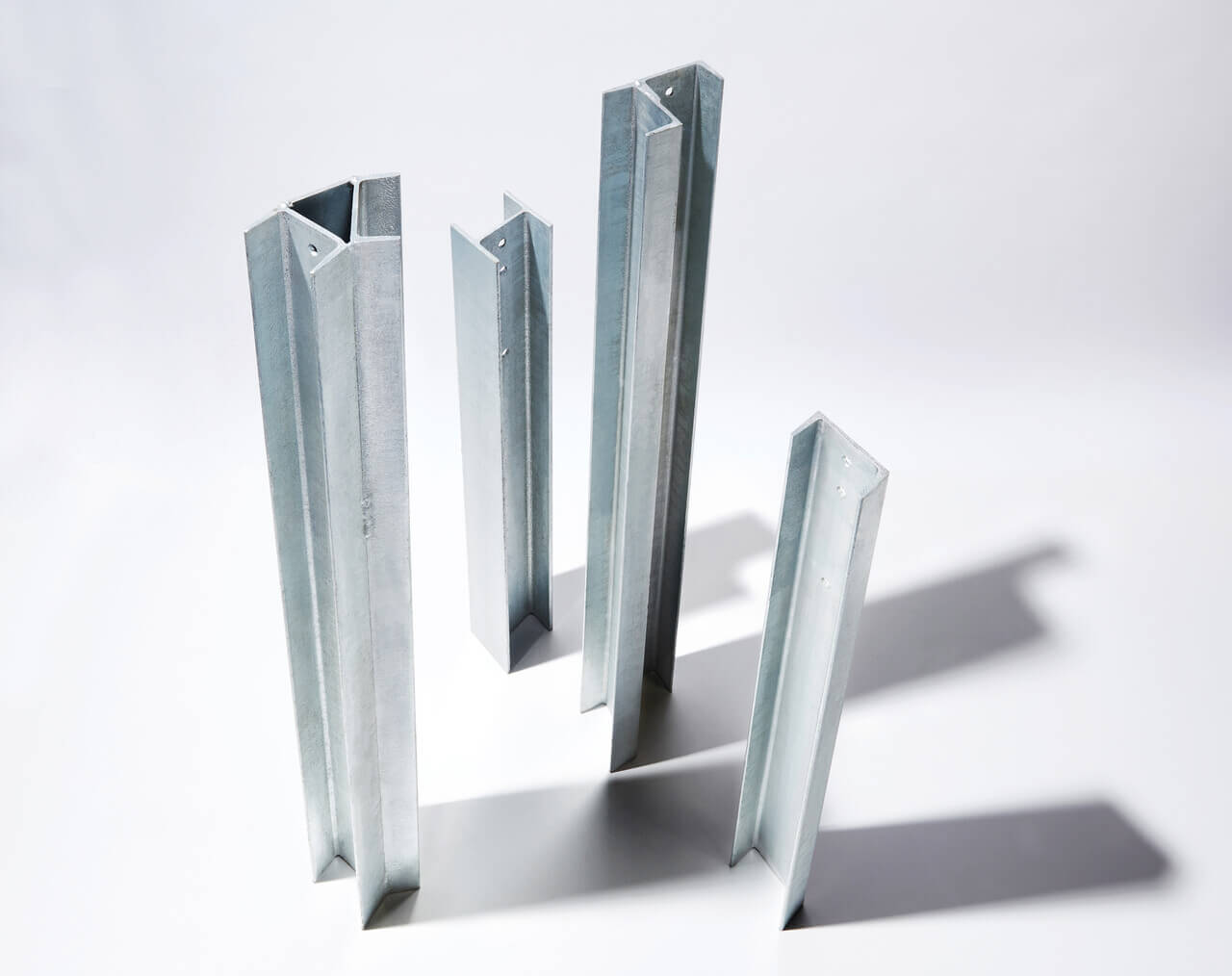

The Steel Retaining Wall Posts are manufactured to meet Galintel’s high standards from quality steel.Our Steel Retaining Wall Posts are available in a range of designs, including H and C Sections, 90° and 45° corner posts, suitable for a range of landscaping applications.
Made with heavy-duty steel, Galintel Retaining Wall Posts are fully hot-dip galvanised for corrosion protection in accordance with AS/NZS 4680:2006.
Galintel Steel Retaining Wall Posts are available in a range of lengths in two depth sizes:
- 100mm Series H & C Section 900mm-3600mm to suit 75mm sleepers
- 150mm Series H & C Section 1200mm-4800mm to suit 100mm sleepers
Both series are compatible with a variety of timber, concrete, or masonry sleepers, enabling a wide choice of designs popular with Australian homeowners.
All posts are pre-drilled for easy assembly and installation, accommodating specially designed fence brackets, and suitable for timber and steel fence applications saving installers a lot of time on site. Complete installation guides are available to help landscapers finish the job with ease.
The Galintel range of steel retaining wall posts can be treated in a variety of finishes. For a sleek contemporary look, Galintel Retaining Wall Posts with galvanised finishes can be directly painted over or powder-coated. Speak with your local paint experts for a recommended product.
Fence brackets are supplied with 2 bolts/Nyloc Lock Nuts/Washers
Size & Stock Length Guide:
100mm Series
|
H – Section Joiner
(15.00kg/mtr) |
C – Section End
(9.55kg/mtr) |
90° Corner
(19.00kg/mtr) |
45° Corner
(19.99kg/mtr) |
|---|---|---|---|
|
900
|
900
|
900
|
900
|
|
1200
|
1200
|
1200
|
1200
|
|
1500
|
1500
|
1500
|
1500
|
|
1800
|
1800
|
1800
|
1900
|
|
2100
|
2100
|
2100
|
2100
|
|
2400
|
2400
|
2400
|
2400
|
|
2700
|
2700
|
2700
|
2700
|
|
3000
|
3000
|
3000
|
3000
|
|
3300
|
3300
|
|
|
|
3600
|
3600
|
|
|
150mm Series
|
H – Section Joiner
(23.4kg/mtr) |
C – Section End
(18.58kg/mtr) |
|---|---|
|
1200
|
1200
|
|
1600
|
1600
|
|
2000
|
2000
|
|
2400
|
2400
|
|
2600
|
2600
|
|
2800
|
2800
|
|
3000
|
3000
|
|
3200
|
3200
|
|
3400
|
3400
|
|
3600
|
3600
|
|
3800
|
3800
|
|
4000
|
4000
|
|
4200
|
4200
|
|
4400
|
4400
|
|
4600
|
4600
|
|
4800
|
4800
|
|
H – Section Joiner
(23.4kg/mtr) |
C – Section End
(18.58kg/mtr) |
|---|---|
|
1200
|
1200
|
|
1600
|
1600
|
|
2000
|
2000
|
|
2400
|
2400
|
|
2600
|
2600
|
|
2800
|
2800
|
|
3000
|
3000
|
|
3200
|
3200
|
|
3400
|
3400
|
|
3600
|
3600
|
|
3800
|
3800
|
|
4000
|
4000
|
|
4200
|
4200
|
|
4400
|
4400
|
|
4600
|
4600
|
|
4800
|
4800
|
|
6mm Timber Fence
(0.89kg/mtr) |
6mm Steel Fence Standard
(0.54kg/mtr) |
6mm Steel Fence Offset
(0.59kg/mtr) |
|---|---|---|
|
Suits H Post, C Post,
90° Corner Post and 45° Corner Post |
Suits H Post, C Post,
90° Corner Post and 45° Corner Post |
Suits 90° Corner Post |
This Item CAN NOT be shipped Via Australia Post
Usual Delivery Cost to Newcastle or Metro Sydney is around $60, Call 02 4367 8273 or contact us for accurate delivery prices
PHONE TO ORGANISE PICKUP OR DELIVERY SYDNEY/ NEWCASTLE/ CENTRAL COAST ONLY
